water & solvent based solutionsSemiconductor Cleaning
Optimize semiconductor manufacturing with ZESTRON’s precision cleaning solutions. Our services cover wafer cleaning, flip chip, BGA, CMOS, and power electronics packaging, removing flux residues, particles, and contaminants to ensure high reliability and maximum yield. With tailored cleaning chemistries and process support, ZESTRON helps manufacturers achieve consistent, clean surfaces, improve throughput, and maintain industry-leading quality standards across all semiconductor and advanced packaging applications.
Benefits of Cleaning
Exceptional Compatibility
Sensitive metals and polymeric substances are safe with ZESTRON. Prevent failures related to discoloration, etching and corrosion caused by aggressive incompatible chemistries.
High Wire Bond Yield & Reliability
Contamination can lead to wire bond lifting, bond pad corrosion, cratering, peeling, and more. ZESTRON’s process solutions provide improved shear values and improved pull tests resulting in maximizing overall yield.
Improved Productivity
Using the ideal cleaning solution in an optimized process will increase productivity and reproducibility resulting in significant cost reductions.
Low-VOCs
Reduced VOCs result in environmentally friendly alternatives and a healthier work environment.
Water & Solvent Based Power Electronics Cleaning
ZESTRON offers aqueous and solvent-based process solutions for cleaning power electronics such as DCBs, IGBTs, discrete components on lead frames, and Power LEDs. These processes ensure optimal results are achieved when performing shear and power cycling tests and that the substrates are thoroughly cleaned before the subsequent bonding and molding processes.
- Power Modules
Power module cleaning for optimal bond quality - Leadframes
Cleaning of leadframe based, discrete components prior to bonding and molding processes - Power LEDs
Power LED cleaning prior to wire bonding
Need help choosing a product?
If your looking for a product but aren't sure where to start, our product finder tool is the perfect solution.
Water & Solvent Based Package Cleaning
ZESTRON offers water and solvent-based cleaning agents designed explicitly for packages such as flip chips, CMOS, and BGAs. These products are formulated for removing flux residues after pre-balling, i.e., the solder bump reflow process, from the tight spaces and capillaries between the chip and base materials.
Our cleaning processes ensure that CMOS sensors are free of streaks and particles, guaranteeing flawless image resolution. With the complete removal of flux residues and particles, optimal wetting of the underfill materials can be guaranteed.
- Flip Chips
Flip chip cleaning prior to underfill - CMOS
CMOS cleaning for optimal underfill conditions and residue free glass filters - BGAs
BGA and micro BGA cleaning after the balling process

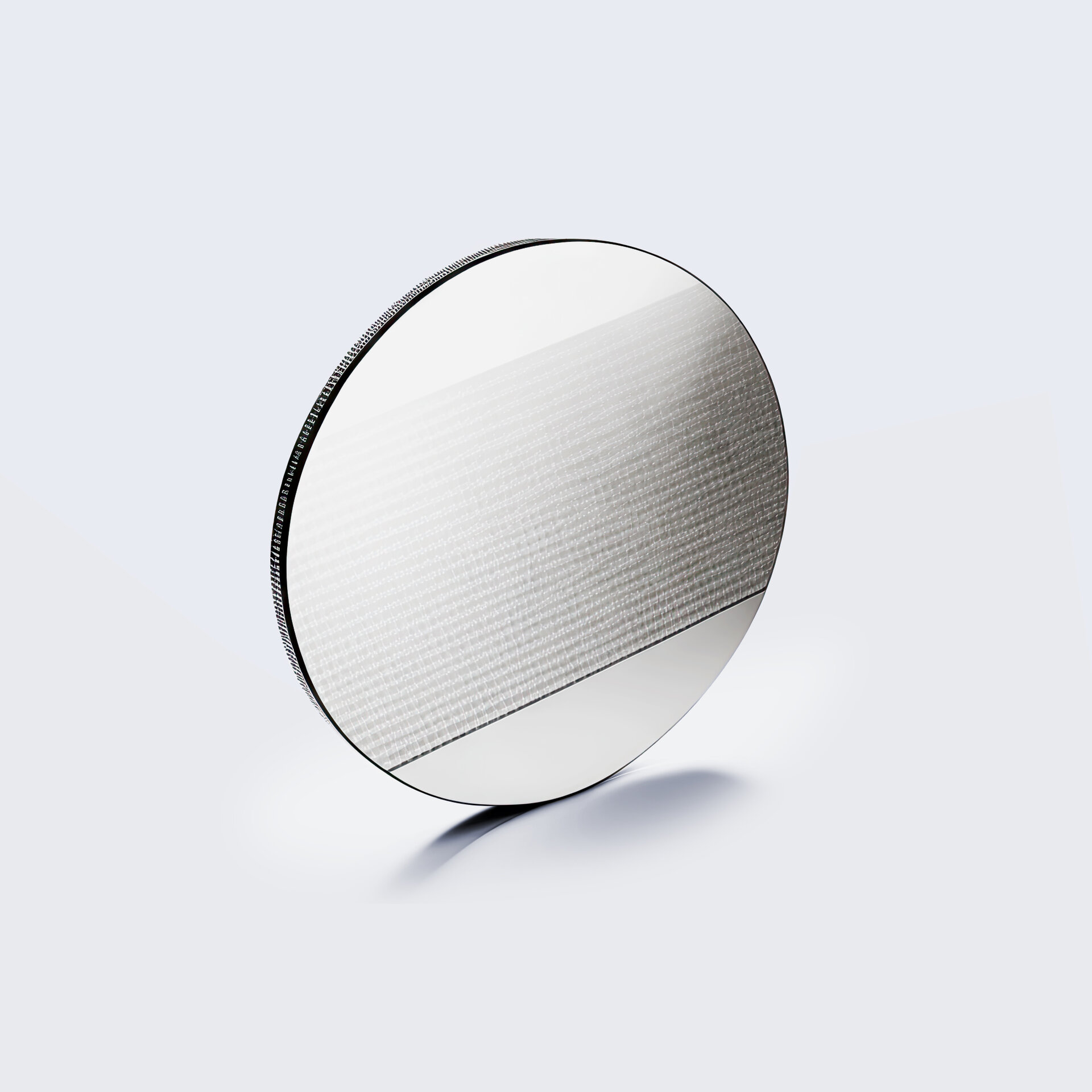

Water & Solvent Based Wafer Cleaning
ZESTRON offers a wide range of cleaning solutions and systems for wafer cleaning, designed to remove a variety of contaminants from wafer surfaces and significantly reducing carbon concentrations from 55% to 0.1% all without damaging the material. These solutions and systems help ensure the quality and reliability of semiconductor products produced from wafers.
Let our experience guide your resultsWe're here to help!
FAQs for Semiconductor Cleaning Applications
ZESTRON offers water‑ and solvent‑based cleaning solutions for semiconductor manufacturing, including power electronics, package cleaning (flip chip, CMOS, BGAs), and wafer cleaning to remove contaminants and flux residues that can affect yield and reliability.
Proper cleaning removes flux residues and particulates that can cause wire bond failures, corrosion, electrochemical migration, and performance issues, helping increase yield, reliability, and productivity.
Clean surfaces improve wire bond strength, reduce defects, and ensure consistent activation for molding and subsequent assembly steps. Low‑VOC and environmentally friendly chemistries also reduce operator and environmental risk.
Wafer cleaning involves specialized agents tailored to remove particles, organics, and metal ions from the wafer surface without damaging substrates improving throughput and reducing crystal defects and oxidation.
