SMT Stencil Cleaning
Stencil cleaning is crucial in surface mount technology as it ensures accurate solder paste application, improves solder joint quality, reduces scrap and rework, prolongs stencil life, and ensures compliance with industry standards.

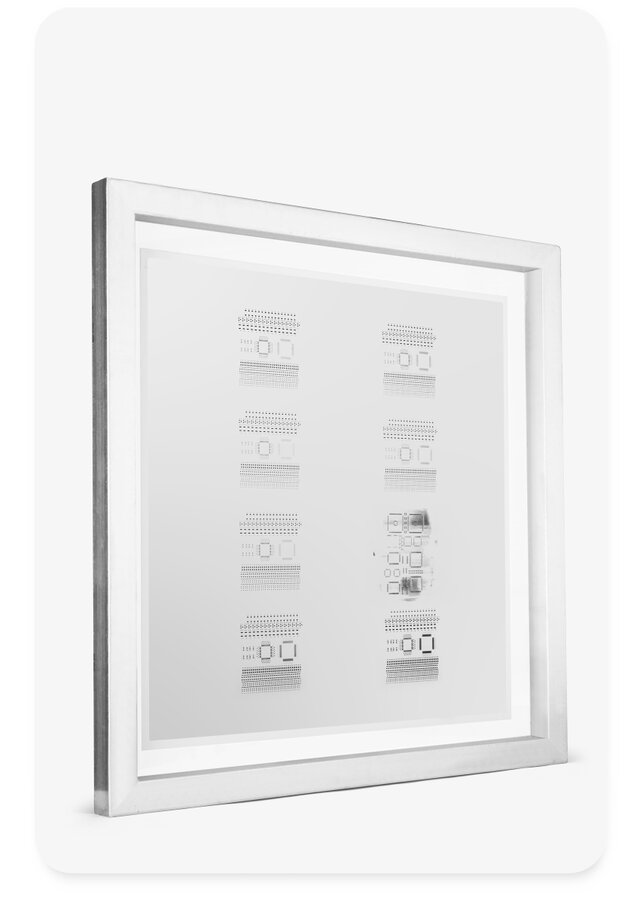

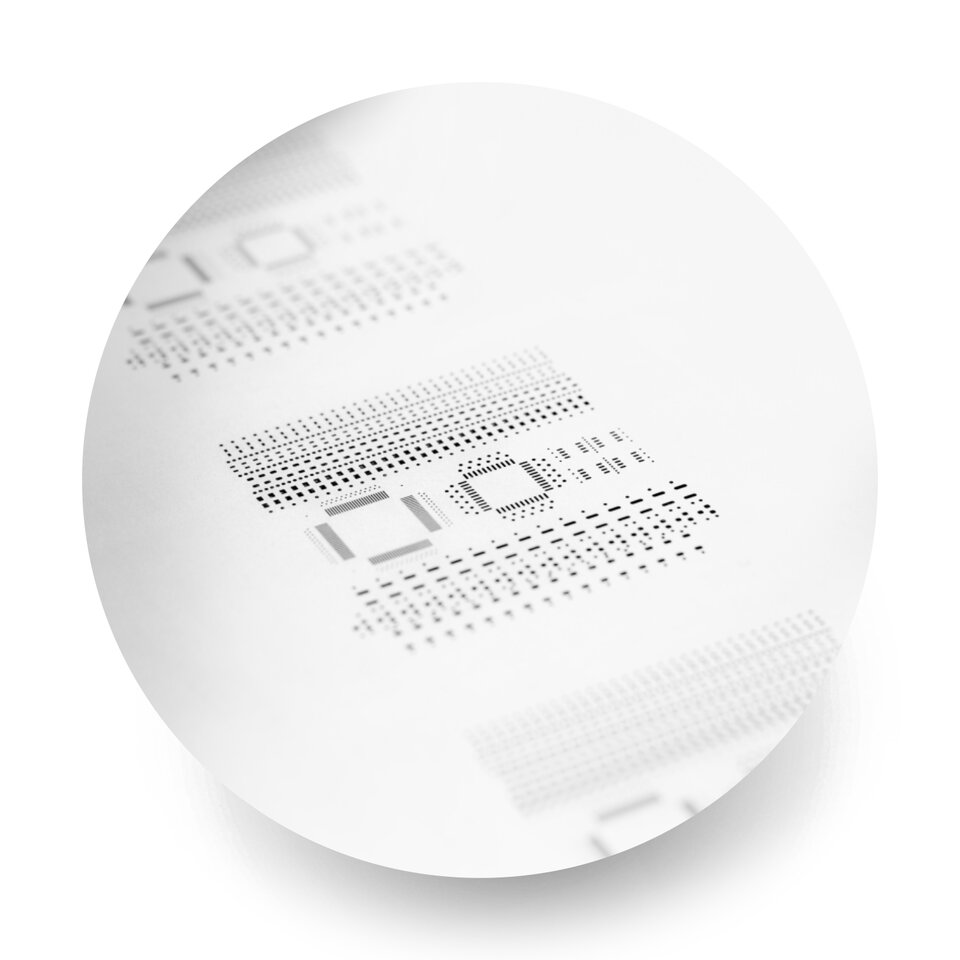

Stencil Technology
SMT stencil technology has advanced significantly over the years, with new materials, designs, and manufacturing processes improving the accuracy and efficiency of the process. These advances include:
-
Improved materials
-
Advanced designs
-
Innovative stencil technologies
Finding the right cleaning product for your application is critical. At ZESTRON, our high precision cleaning agents are powered by proprietary chemical technology. We work with all the industry leading stencil manufcaturers to deliver cleaning solutions compatible with the latest technilogical advancments.
Stencil cleaning is crucial in SMTThe Importance of Stencil Cleaning

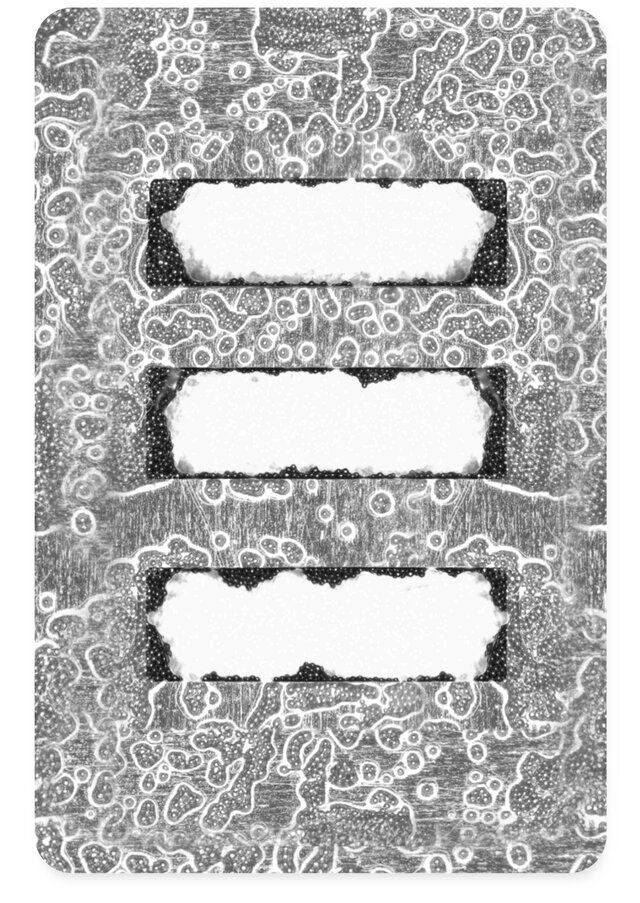

When manufacturing electronic assemblies, solder pastes, SMT adhesives or thick film pastes are printed or applied using stencils, pump print stencils or screens. Paste residues and remaining SMT adhesives on stencil surfaces and apertures can lead to misprints resulting in bridging and solder balling issues.
Stencil cleaning is crucial in surface mount technology as it ensures accurate solder paste application, improves solder joint quality, reduces scrap and rework, prolongs stencil life, and ensures compliance with industry standards. For optimum print results, it is necessary to clean the stencils and screens is an automated stencil cleaning machine or manually. Misprint cleaning and underside wiping in printers are also key aspects of ensuring reliability of your process.
Automated stencil cleaning is the preferred method to ensure that the cleaning results are always reproducible as compared with a manual cleaning process. Manual cleaning can cause mechanical damage and soften the stencil epoxy over time resulting in possible delamination issues.
IPC standard (IPC 7526), recommends the use of an automated cleaning system in order to meet all production requirements.
There are numerous processes available for stencil cleaning including spray and ultrasonic dip tank processes. Depending on the type, these can be used with solvent and aqueous-based cleaners. These cleaning machines can be further differentiated by the number of chambers that are available for the various process steps such as cleaning, rinsing and drying. This enables the cleaning process to take place in one or more chambers. Steel stencils, fine pitch and nano-coated stencils as well as screens are commonly cleaned in these machines.
When cleaning a low volume of stencils, SMT adhesives and solder paste can be removed manually. Automated stencil cleaning is desirable with a large volume of stencils and has the added benefit of offering high quality repeatable results.

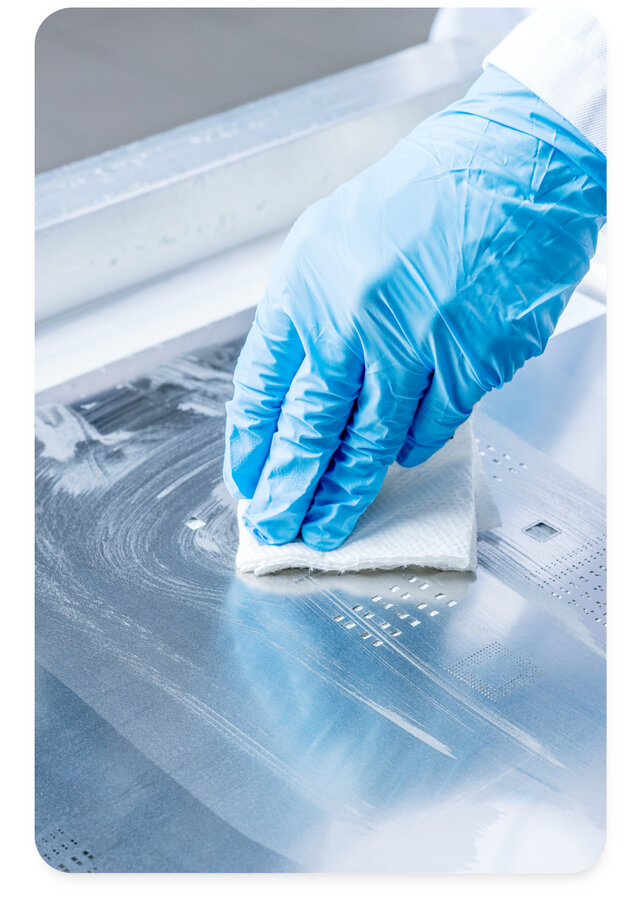

When cleaning manually, it is important to use a stencil wipe material that does not leave any lint or other residues on the stencil. At the same time, manual cleaning must be done carefully as too much force can easily damage the stencil.
Even though cleaning stencils can substantially improve the print results, misprints can still occur during the production process. When cleaning misprints, you are primarily removing solder paste that was inaccurately applied during the printing process.
When cleaning double-sided misprints, not only are misprinted solder pastes removed but also flux residues from the soldered side as well. Activator residues remaining on the board due to an inadequate cleaning process can cause improper assembly and field failures.

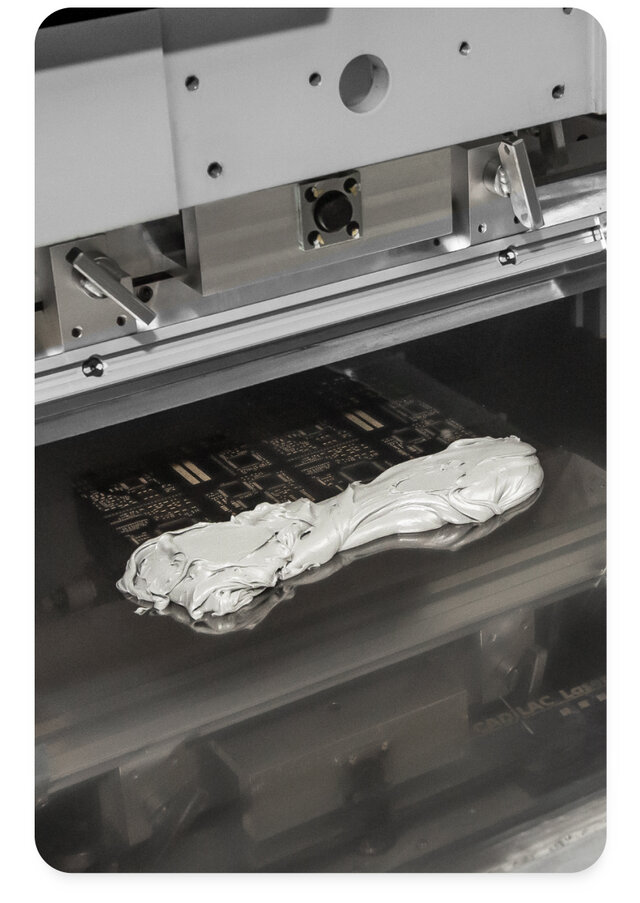

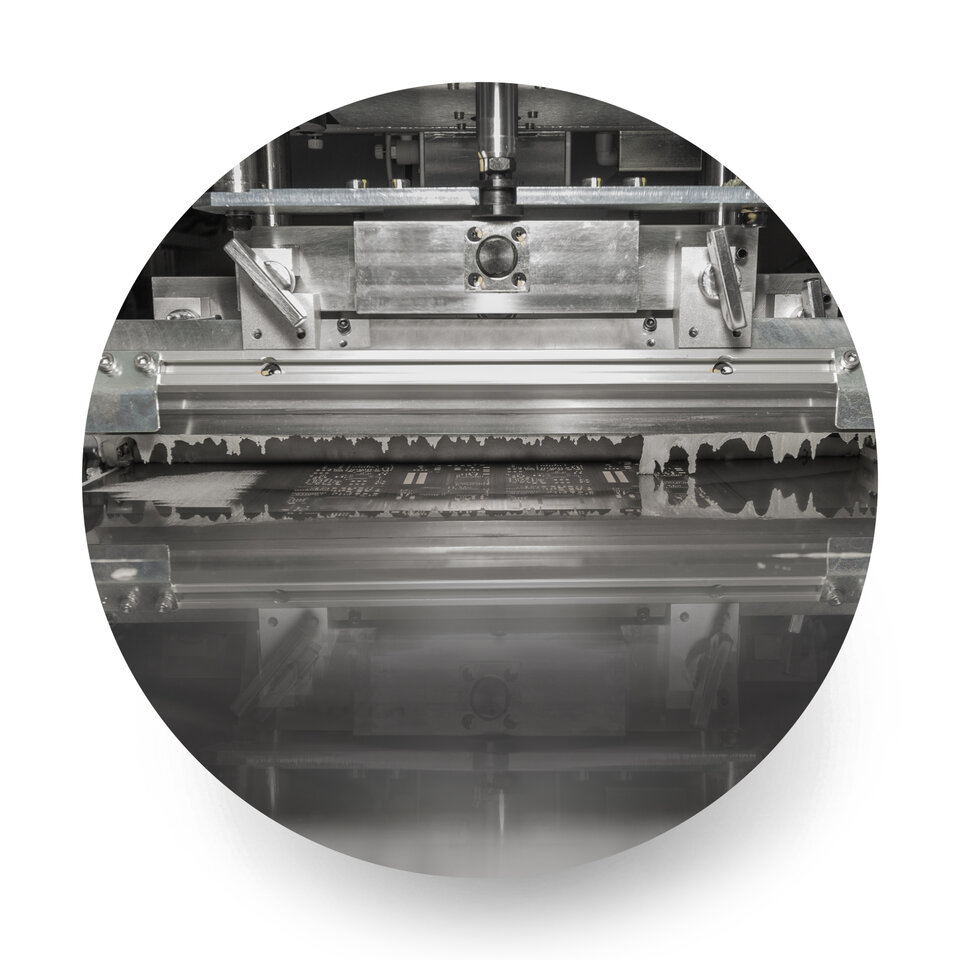

the stencil underside wipe process in SMT printers is critical in order to achieve reliable and consistent print results.
Using the right cleaning agent is most critical step in the underside wipe process. It must provide excellent cleaning results, and be highly compatible with the solder paste. During the underside wipe process, the flow of cleaning agent through the apertures and its interaction with the solder paste cannot be prevented. An incompatible cleaner, such as IPA (Isopropyl alcohol), can affect the viscosity of the solder paste and therefore impact the print result, i.e. the solder paste deposit. Additionally, the consumption of IPA is typically high due to evaporative losses (low flash point).
ZESTRON cleaning agents have been specifically designed for underside wipe processes. They provide excellent cleaning results, feature low consumption and do not affect the viscosity of the solder paste. ZESTRON offers aqueous-based as well as solvent based underside wipe cleaning agents for all stencil types including nano-coated stencils. These products have been approved by leading SMT printer and stencil manufacturers.
Step Inside our Technical Center

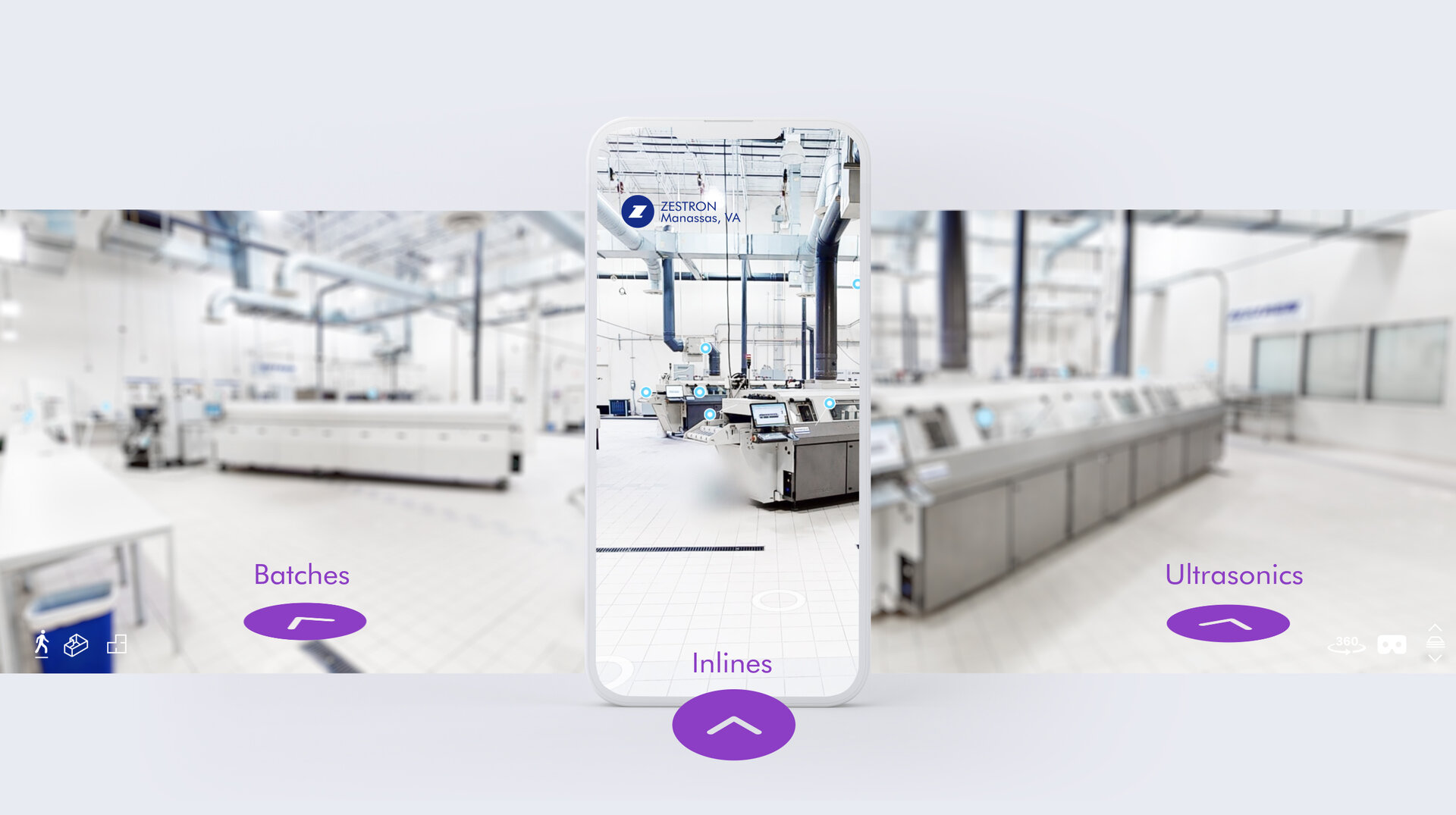

Our Technical Center in Manassas, VA, has a large selection of stencil cleaning equipment from multiple manufacturers, varying in size and price, and available for you to test.
searching for a product?Use Our Product Finder Tool
ZESTRON is committed to providing the highest quality cleaning products that deliver exceptional results every time. Our cutting-edge technologies and expertly formulated agents ensure unparalleled cleaning performance and reliability, making us the preferred choice of industry leaders worldwide.
Standards & safetyQuality, Efficiency & Environmental Friendliness: Stencil Cleaning at Zollner Elektronik AG
"Evaluating the CL500 and the water-based cleaning agent of the VIGON SC series was well worth the effort as the improved system provided Zollner with a return on investment within a short time."
Frequently Asked Questions – SMT Stencil Cleaning
Answer: Thorough stencil cleaning ensures accurate solder paste application and consistent print results. Residues from solder paste or adhesives can clog apertures and lead to misprints, bridging, solder balls, and increased scrap rates if not properly removed. Regular cleaning helps maintain process stability and reduces defects.
Answer: Cleaning frequency depends on factors such as solder paste type, board complexity, and production volume. For high-volume runs, stencils may be cleaned after every few prints, while manual cleaning in lower volumes can be done more frequently based on print inspection results.
Answer: Manual cleaning uses lint-free wipes and compatible solvents and is suitable for low volumes, but it’s labor-intensive and can risk mechanical damage. Automated cleaning systems deliver reproducible results, minimize stencil wear, and are preferred in high-throughput production.
Answer: SMT cleaning can be done using inline spray systems, batch cleaners, ultrasonic tanks, and manual cleaning methods depending on throughput and board complexity. Each method has advantages based on production volume and geometry.
Answer: Yes. Low-standoff cleaning — where flux residues must be removed beneath tightly spaced components — requires appropriate cleaning processes that can penetrate small gaps without leaving residue.
Answer: Absolutely. Cleaning SMT stencils removes solder pastes and adhesives that can clog apertures and cause misprints, improving solder paste deposition consistency and reducing defects.
Answer: Cleaning chemistry should match the type of flux or residue being removed and the cleaning process used. Incorrect chemistry can lead to issues like foam or incomplete cleaning, so selecting products optimized for your process is essential.
Answer: Challenges include excessive foam formation, hard-to-reach low-standoff residues, improper choice of cleaner for a given process, and residues that bind to components. Effective process control and analytics help mitigate these issues.
